TRAFFIC / CCTV / CAMERA POLES

SEND INQUIRY

TRAFFIC / CCTV / CAMERA POLES

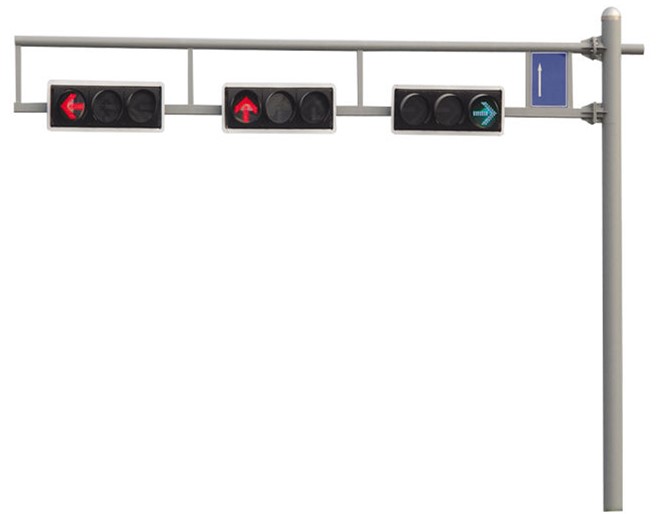

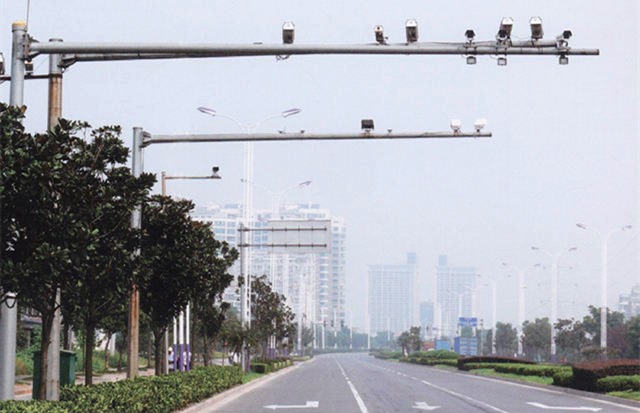

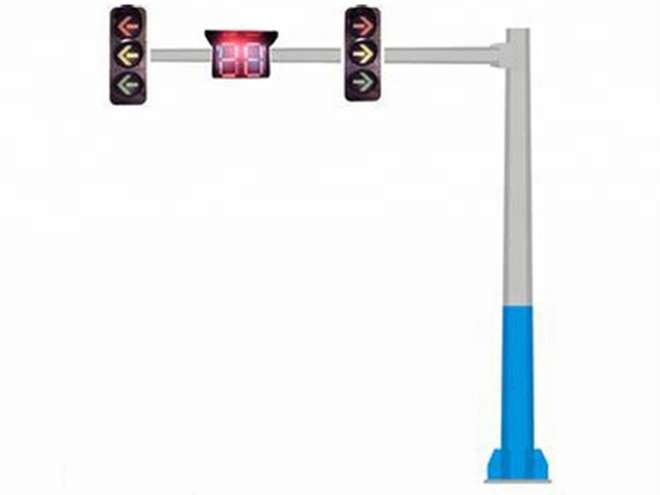

ProductsTraffic Poles, Camera Poles, CCTV Poles, Monitor Poles

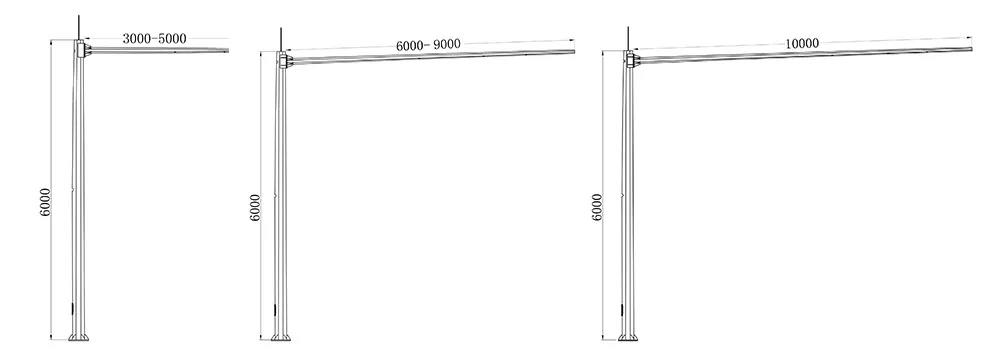

TypeWith Single / Double / Triple /Four Outreach Arms

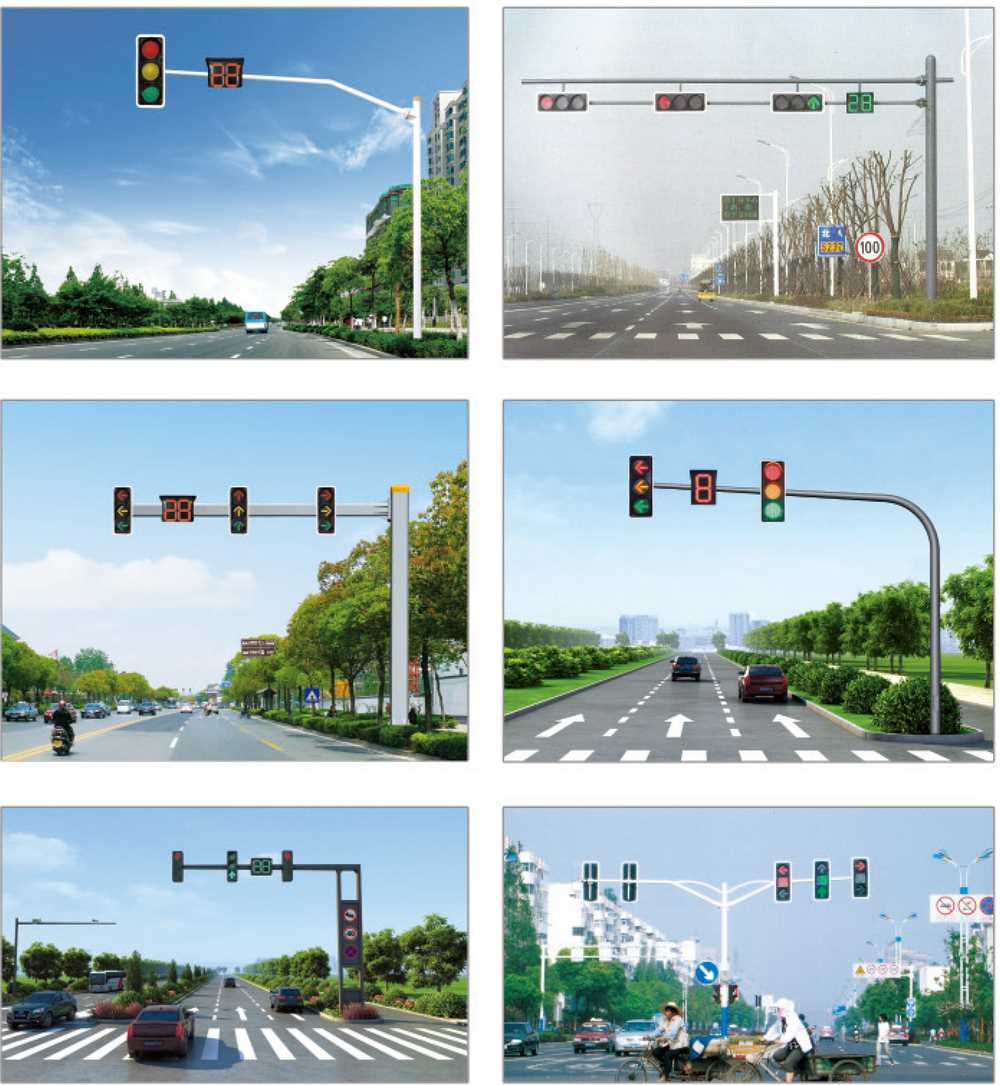

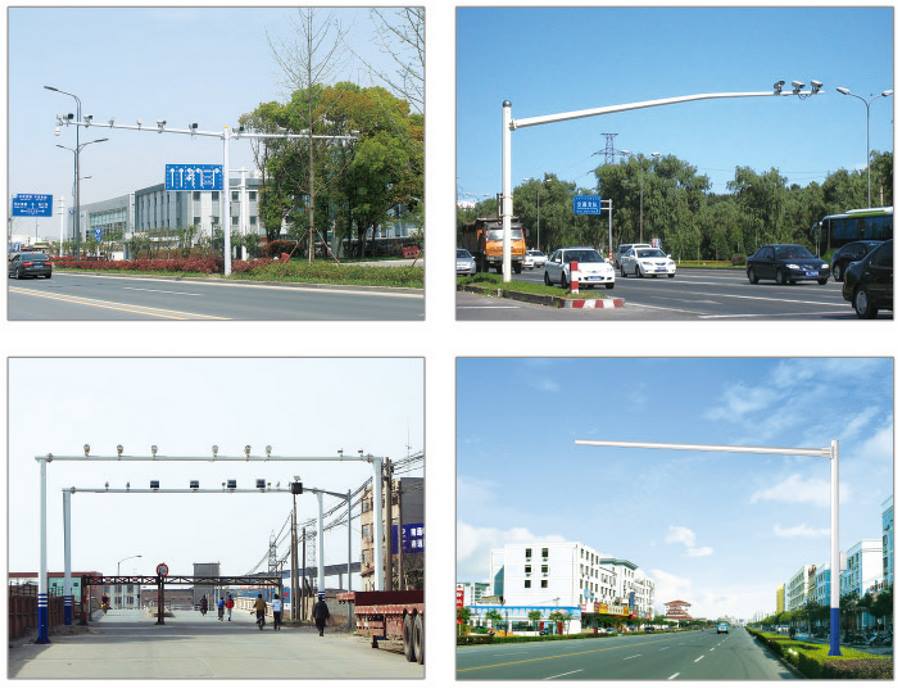

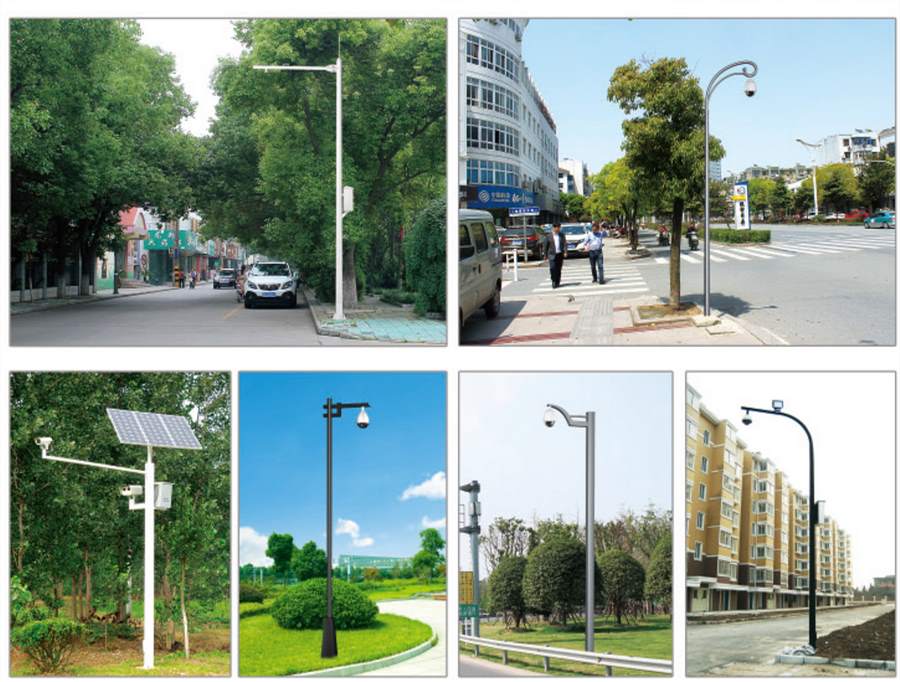

ApplicationsStreet / Road, Highway, Commercial Areas, Seaport, AirPort Lighting, etc.
ShapeCoical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
MaterialHot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface TreatmentHot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
Can be powder coated or painted according to clients' request
Wall Thickness2~30mm
Once Forming16m Once forming without joint
WeldingWelding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment ad your request
Joint Joint with insert mode, flange mode.
Base plateBase plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
Life PeriodMore than 25 years, it is according to installing environment
