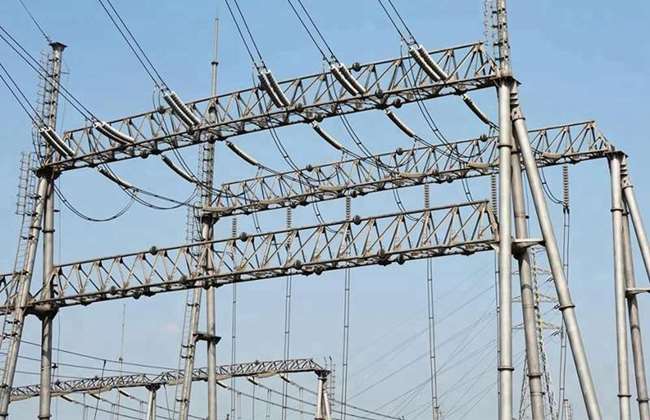

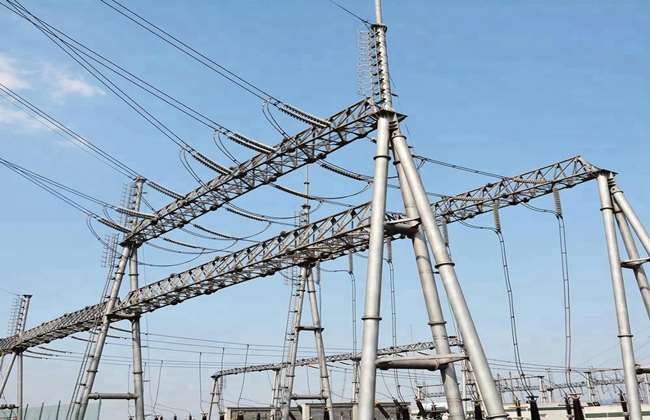

220KV Substation Steel Structure

Substation structure is a place in a power system where voltage and current are transformed, and the energy is received and distributed.The substation in the power plant is a booster substation, whose function is to boost the electric energy from the generator and feed it to the high voltage power grid.

1. Material: Q235 / Q345 or material equivalent  for required standards

2. Voltage   : 10KV, 110KV, 220KV, 500KV or others.

3. Antenna Support: 3-20 PCS Wind Pressure: 5-190 KM/H

4. Surface Coating: Hot Dip Galvanization or Painting (special treating for the long duration sea transportation)

5. Welding: CO2 welding or Submerged arc auto methods

6. Spare Parts: Parts for connection or installation will be provided

7. Design Lifetime: More than 30 years

8. Capacity: 15000 MT per Month

9. Type test accepted, Pre-shipment test accept

10. Company audit accepted
