STREET LIGHTING POLE

SEND INQUIRY

STREET LIGHTING POLE

Products

Street Lighting Pole, Lamp Pole Post, hinged steel pole columns

Type

With Single / Double / Triple Outreach Arm

Applications

Street / Road Lighting, Highway Lighting, Commercial Areas Lighting, Seaport Lighting, AirPort Lighting, etc.

Shape

Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)

Material

Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and
others equivalent steel material

Surface Treatment

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006Can be
powder coated or painted according to clients' request

Wall Thickness

2~30mm

Once Forming

16m Once forming without joint

Welding

Welding complies with AWS D1.1 standard.CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

Joint with insert mode, flange mode.

Base plate

Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Life Period

More than 25 years, it is according to installing environment

Certificates

ISO9001-2008 , AAA credit rating, etc



                           Single Arm

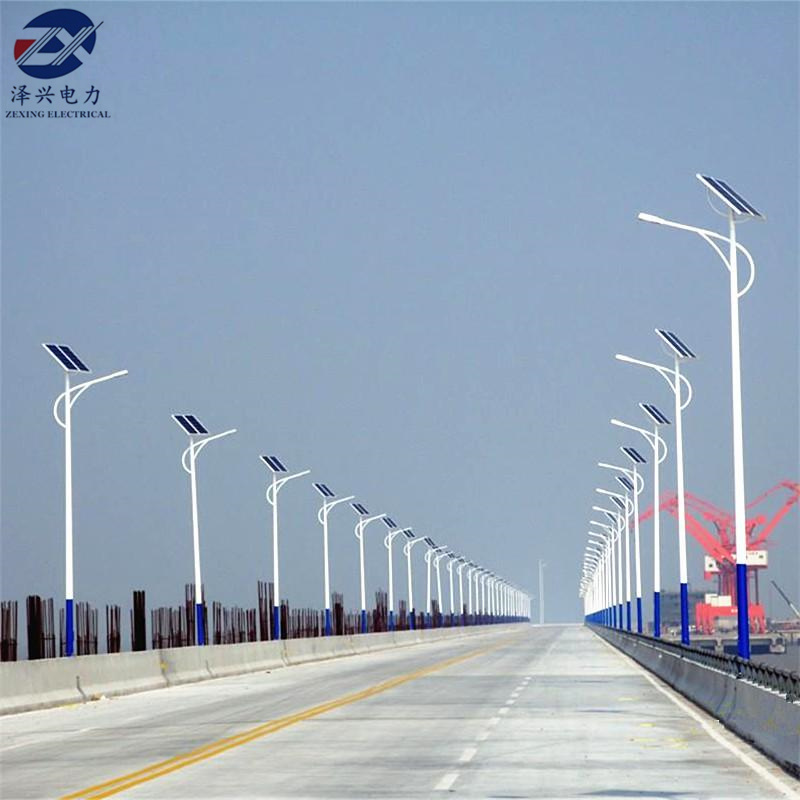

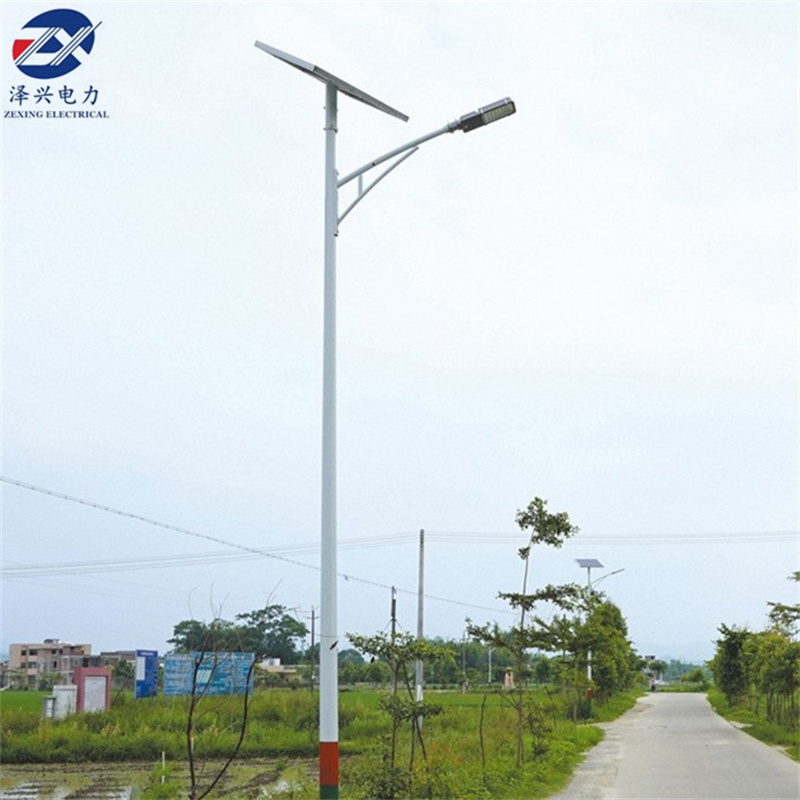

                        Solar Light

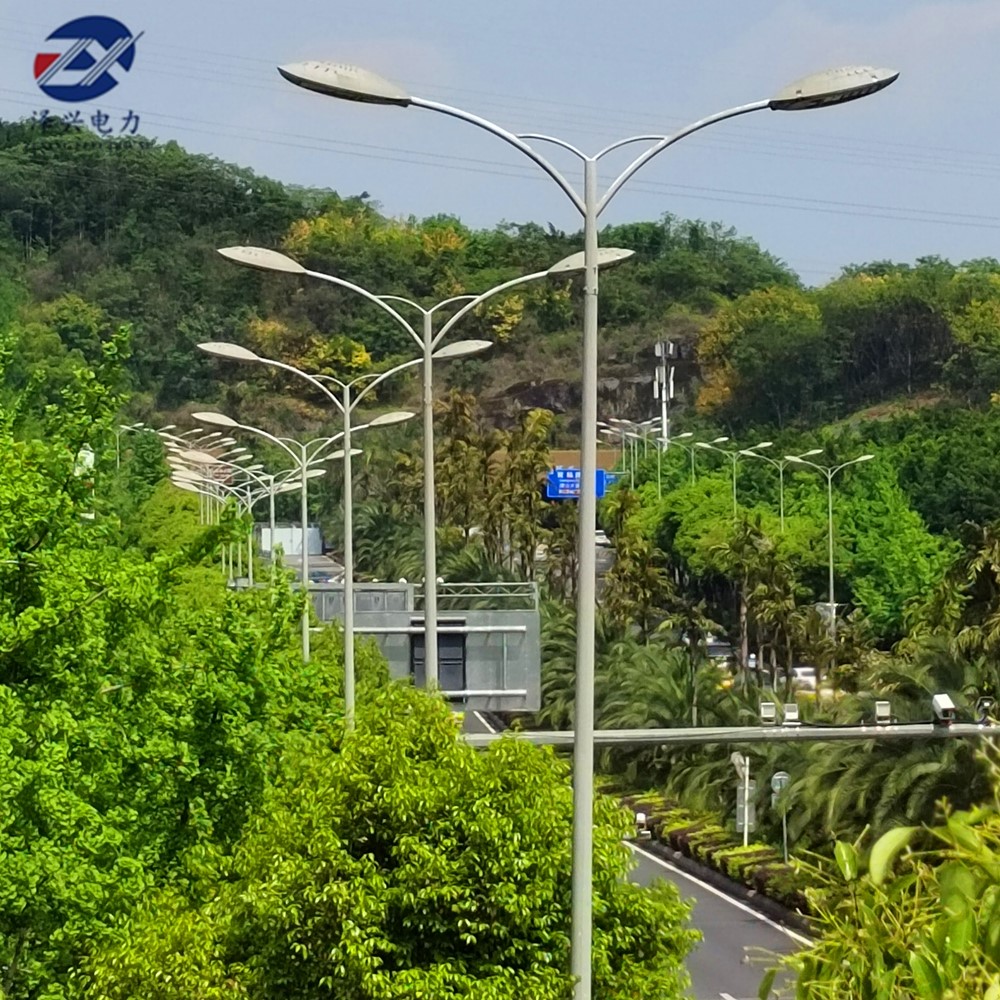

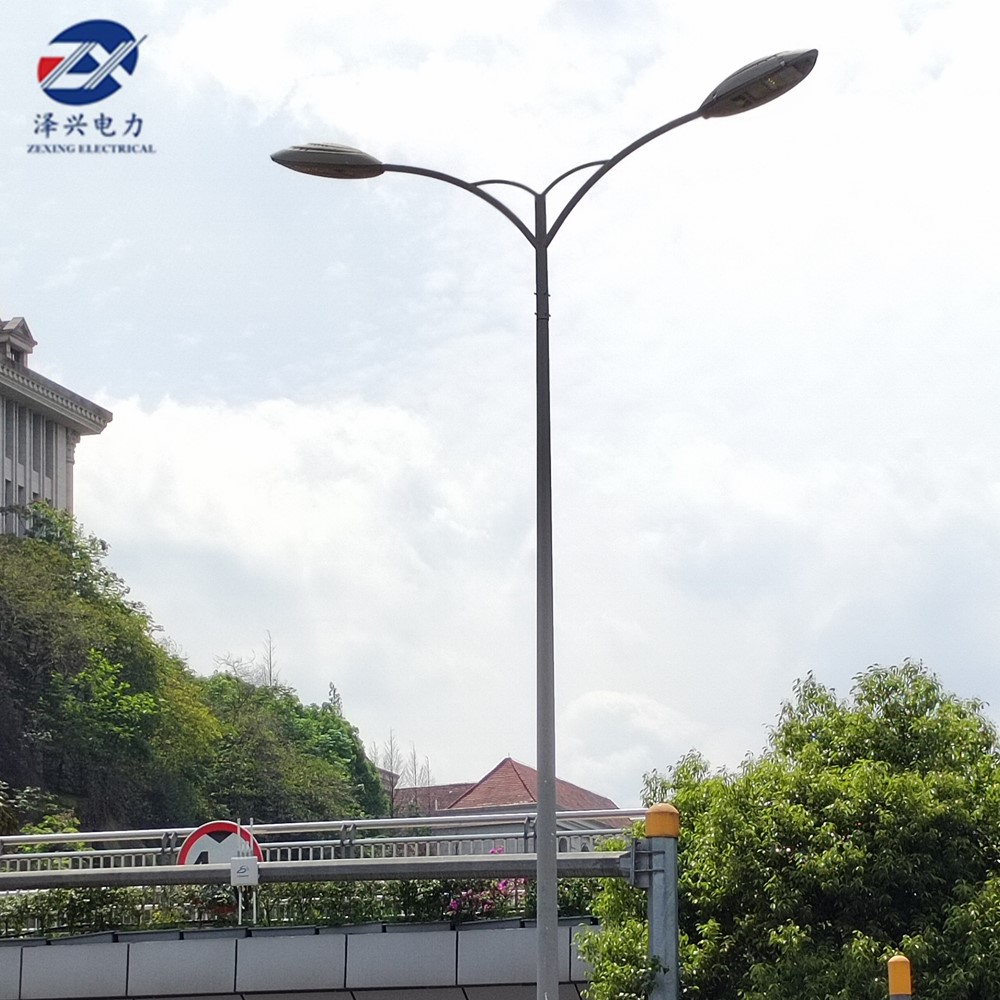

                    Double Arm





F
