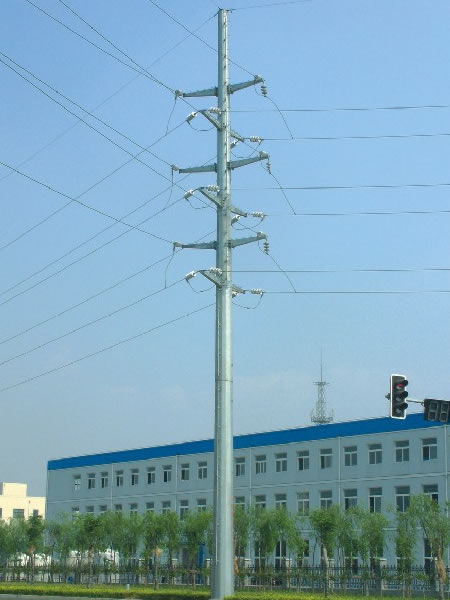

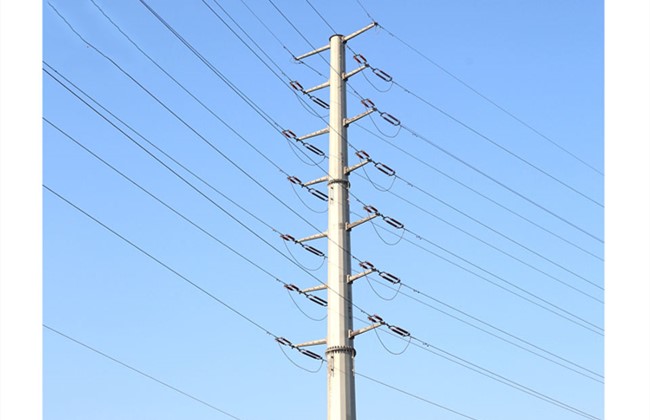

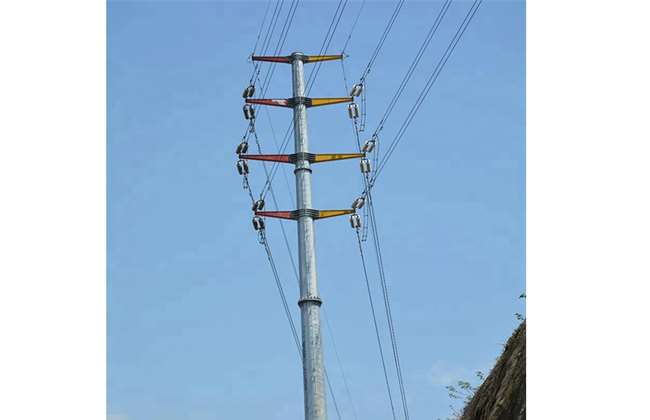

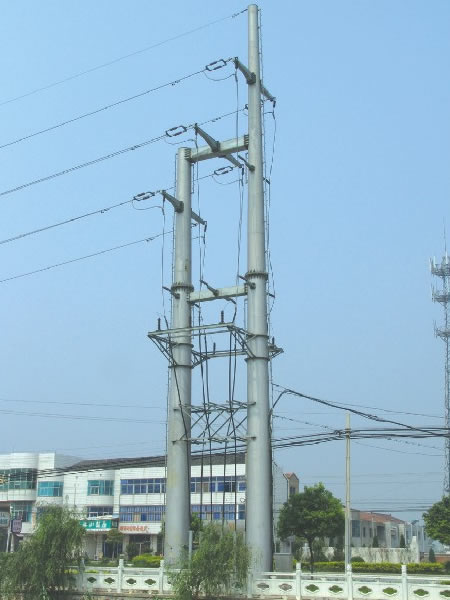

Medium Voltage Transmission Line Steel Poles (10kv-35kv)

1. Height: From 3 m to 50 m

2. Suit for: Airport ,seaport,plaza,stadium,square,highway,street way etc

3. Shape: conical, polygonal(6-side,8side,12-side,16side) round tapered,Multi-pyramidal,Columniform

4. Material: Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490

5. Working temperature: -35 °C~+45 °C

6. Surface treatment: Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

7. Welding Standard : We has past flaw testing.Internal and external double welding makes the welding beautiful in shape

AWS ( American Welding Society ) D 1.1

8. Thickness: 1 mm to 30 mm

9. Packages: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

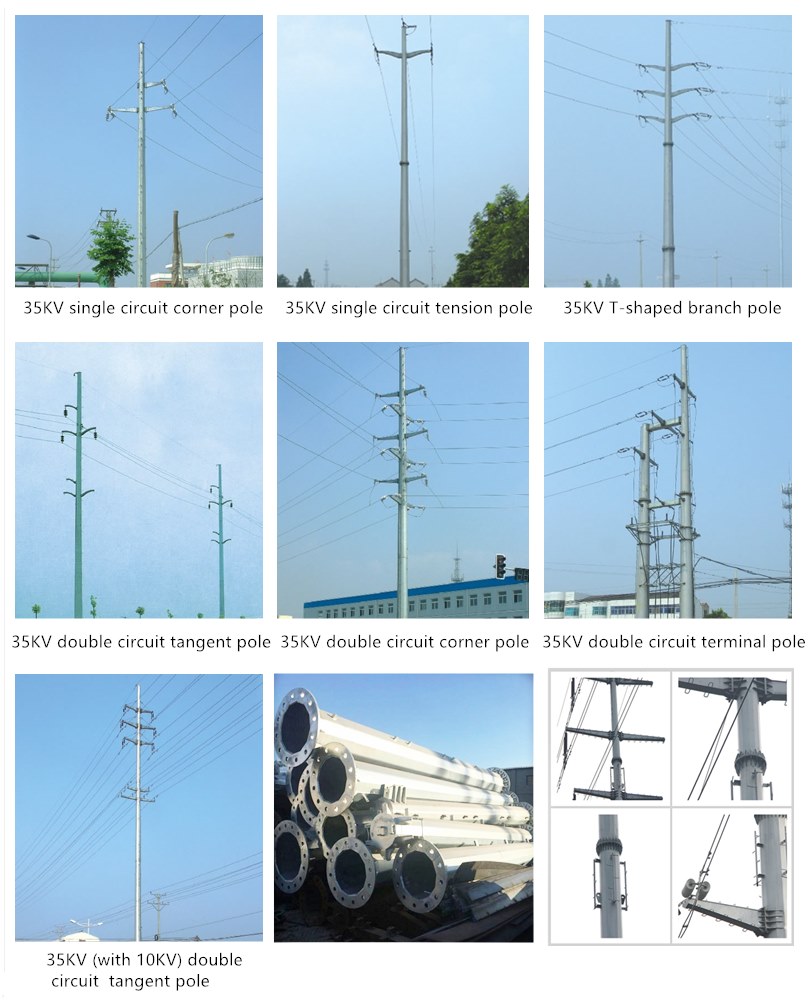

CZEE provide every type of Medium Voltage distribution pole, mainly for city power grid and power distribution network. These Medium Voltage distribution poles can be manufactured as one large piece, or as several small pieces which fit together. This type of pole often used in city power transmission grid, with little space, economic and lower cost. Now CZEE can produce distribution pole with some type as follow:

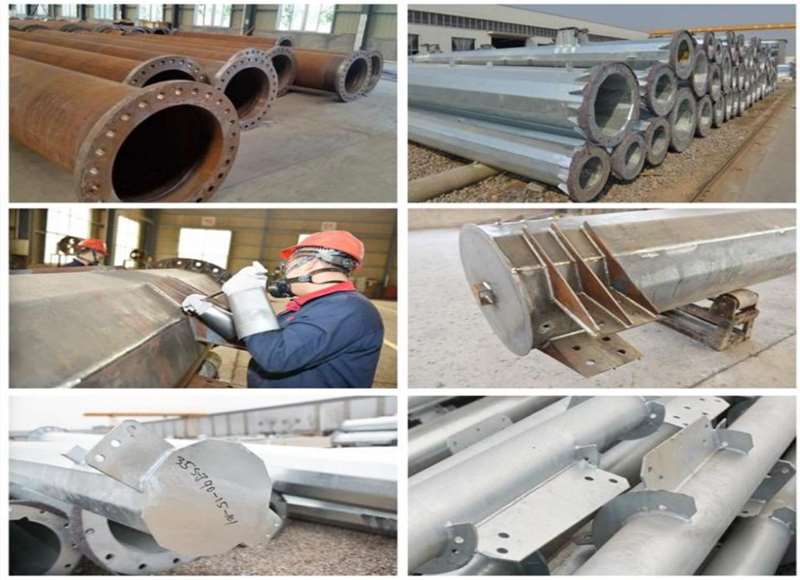

(1) Flange connection

(2) Slip joint

(3) Step type

(4) Stagger type

(5) Others

Today, with over 20 years of experience and our commitment to excellence, CZEE remains an industry leader in the manufacture and design of steel tubular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. CZEE has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. Another advantage is our 3D design and loading & design report, and can optimized the design and save cost for our clients.
